Refrigerant Cycle Project
Refrigerant Cycle Project

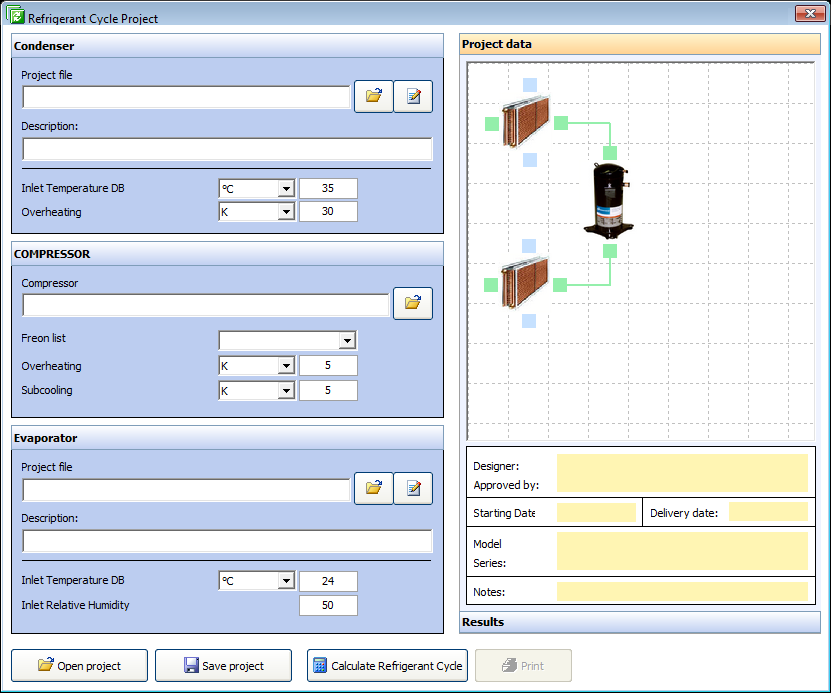

Coils 8.0 ENTERPRISE permits to calculate / balance a simple refrigerant cycle project of a unit made of a condenser coil, evaporator coil and a compressor.

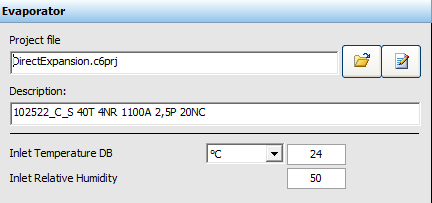

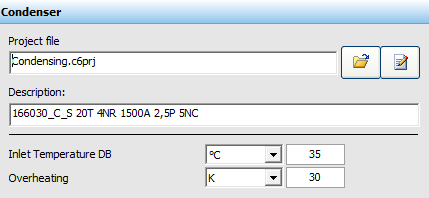

Beforehand, the evaporator and condenser projects must be calculated separately and saved on the computer.

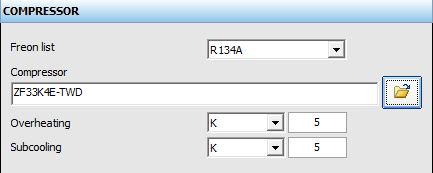

The software provides an opportunity to work with an archive of compressors, some models of which are already loaded. If the user cannot find the required model of the compressor used, he can add the required model himself (see the section 'Managing Compressors').

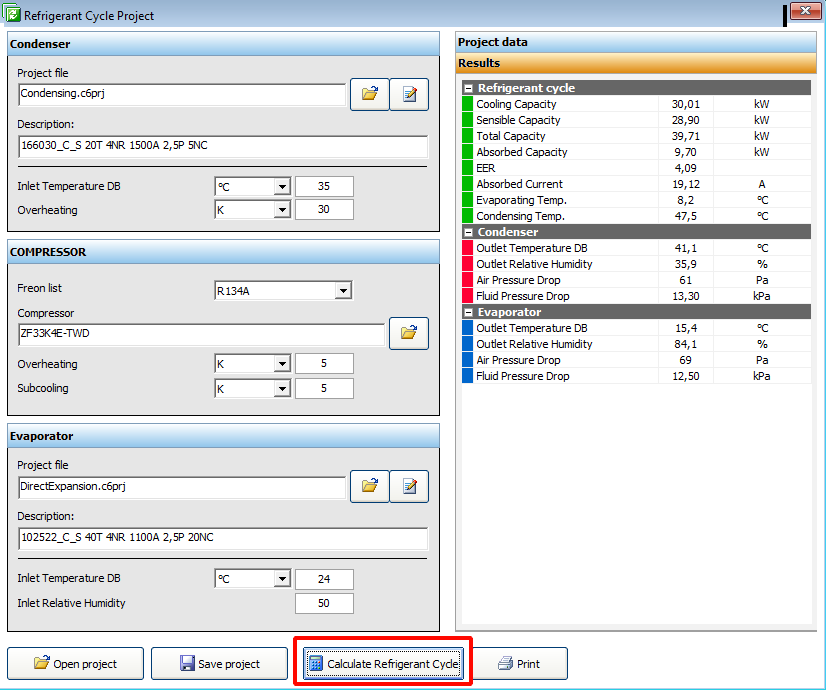

By entering the necessary data, the refrigeration circuit can be calculated and the results printed.
