Fans Management

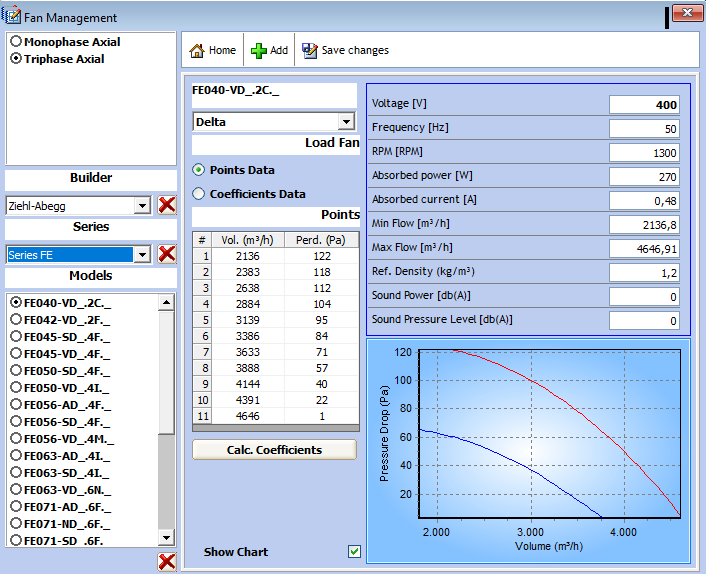

Here you can modify the data of the fans already inserted in the archive, insert a new one by the button , or delete a model selected in the left list:

If you click on you have to choose a builder from the list or insert a new builder, inserting his name and clicking on “Add”:

Then click on “Next” and do the same for series:

Now you can insert the name of the model and choose the typology:

At this point for each electric supply:

You can insert the fan data:

And the points of the curve:

Or the coefficients already given by the builder:

Then click on “Save changes” and the fan will be saved into the database.
