Coils Price Calculation
Coils Price Calculation
The “Coil Price Calculation” voice
of the Calculate menu was disable. The cost of the heat exchanger can be calculated after the heat exchanger has been calculated.

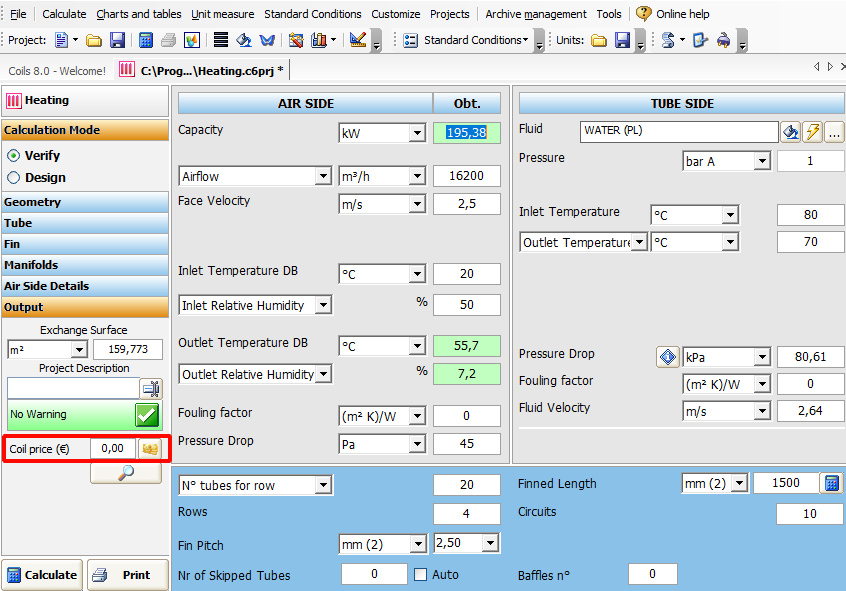

Once activated
, the cost will be calculated automatically. For more detailed information, you need to use a

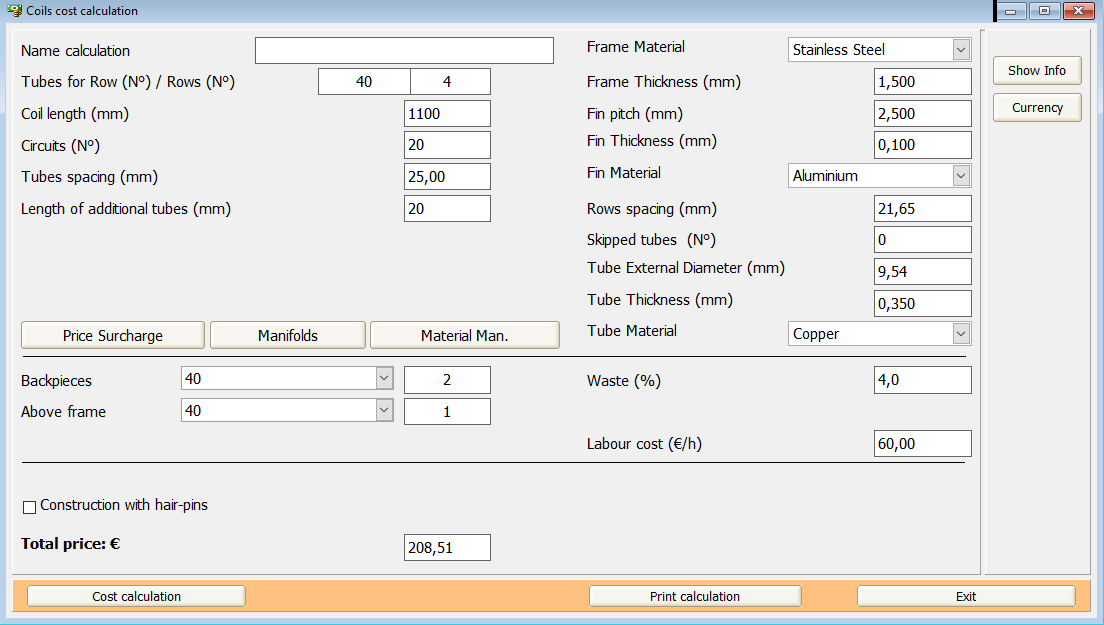

It is possible to enter the name of the calculation, then activate the “Price Surcharge” and set the following values:

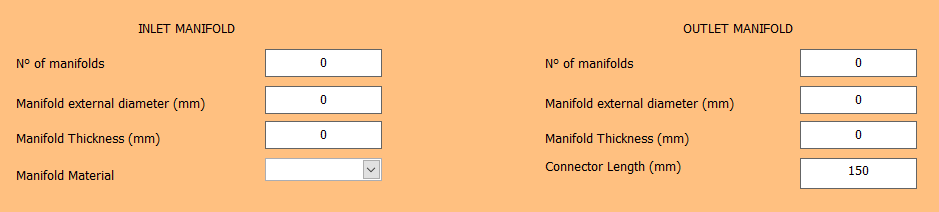

Activating the “Manifolds” button, we can set the manifolds data necessary for the price calculation:

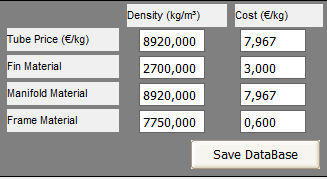

Using “Material Man.” you can set the cost and density for each materials:
In the main mask, you see also the width of backpieces (40 mm) and the number which can be set as 0, 1 or 2:
Then in the same mask, you can set the percentage of waste material, the labour cost and an extra cost to the material original cost already set in the previous step:
If we have a coil built with hair-pins, we can flag the related box:
After that, it is possible to calculate the cost of the heat exchanger and print the report:
