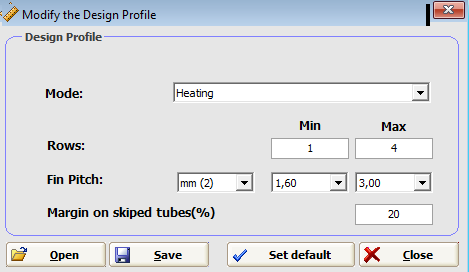

Modify The Design Profile

permits to set some fundamental information (like min and max number of rows, of the fin pitch) for the each calculation modality.  This info will be used for the calculation in “Design” calculation mode: for example, if you set min nr.of rows as 1 and max as 4, you will not get the coils with more than 4 rows among the results, and the same for fin pictch and skipped tubes.
