To calculate the condenser with subcooling circuit, it is necessary to open the corresponding section on the left side of the screen and activate this function:
Then it is requested to insert the data relative to the subcooling part, which are: “N° tubes for row”, “Rows” and the “Circuits”, which are the input values, as we can see in the following screen.

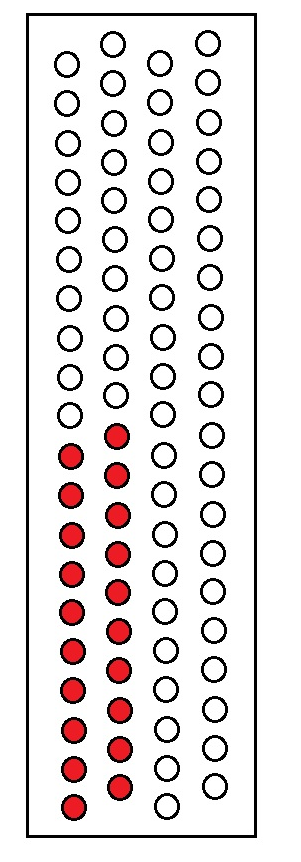

In that example, configuration of the coil could be the following:
Where the subcooling circuit is composed by the red coloured tubes.
Then we click on “calculate” to obtain the capacity of the subcooling circuit.

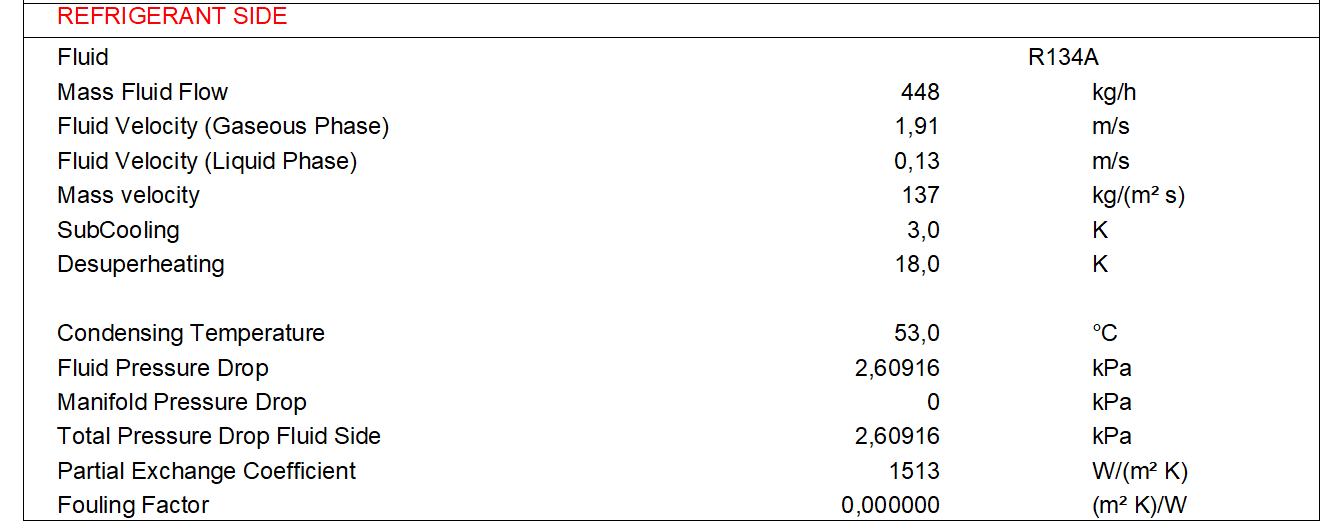

We can see our results in
Then we can go to print to see the printout templates.
The data relative to the subcooling part are abailable in Advanced → the first Technical Data and Additional Tech. Data.
