Condensing Example

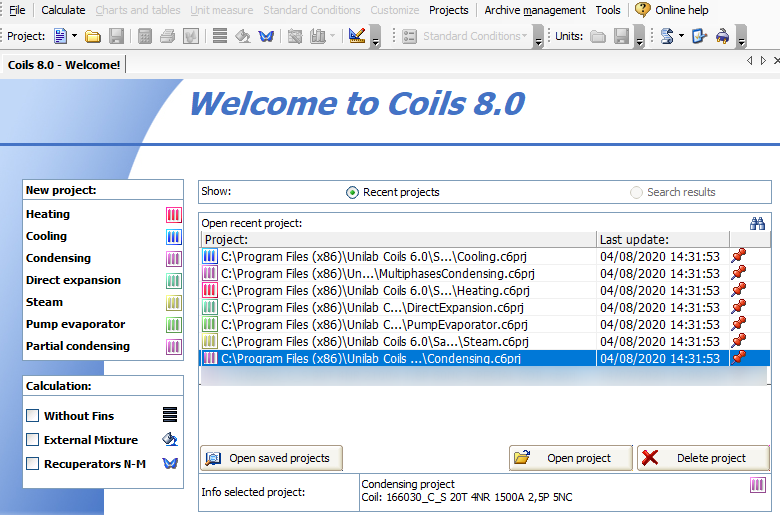

To open the Condensing calculation example, click twice on “Condensing.c6prj” file under the “recent project”

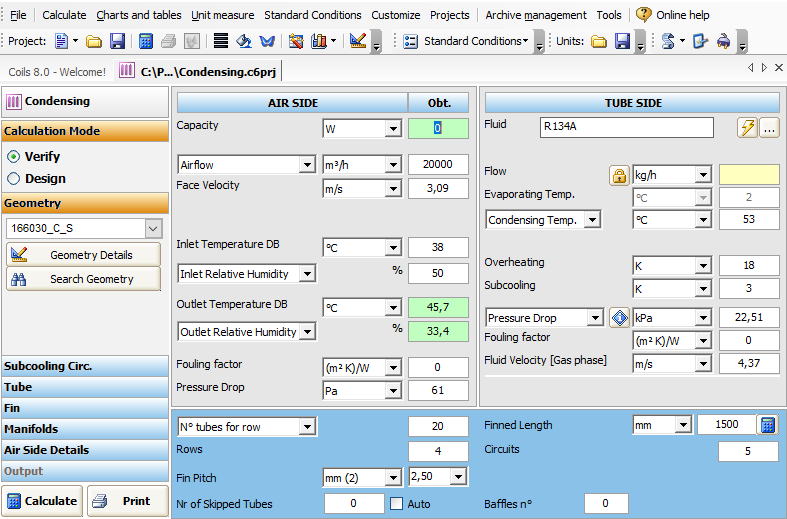

Like in the previouse examples, we can see 4 work areas:

  • CALCULATION MODE and the sections: geometry, subcooling circuite, tube, fin, manifolds and the air side details







  • AIR SIDE data

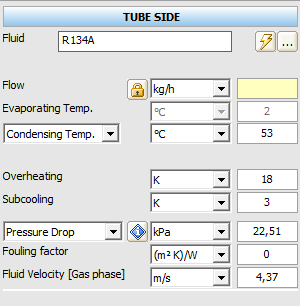

  • TUBE SIDE data


  • COIL CONSTRUCTIONS data

Now click on  “Calculate” button

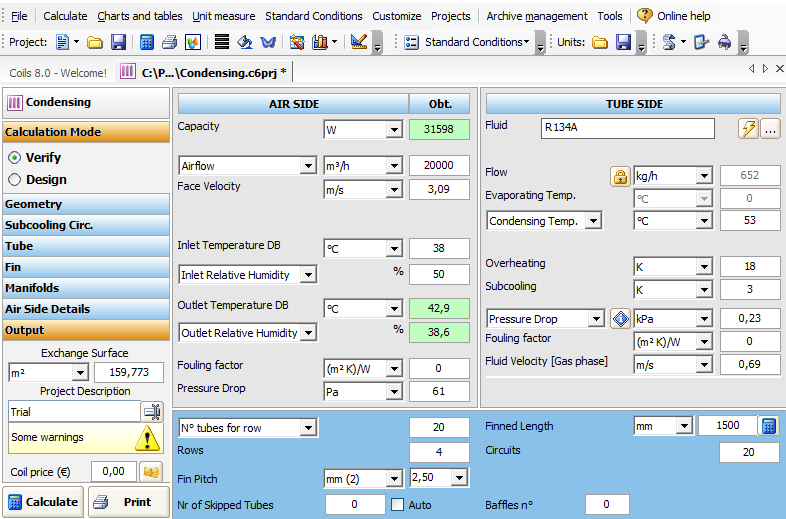

In this case, we see some warnings that in any case allow you to proceed with a calculation.

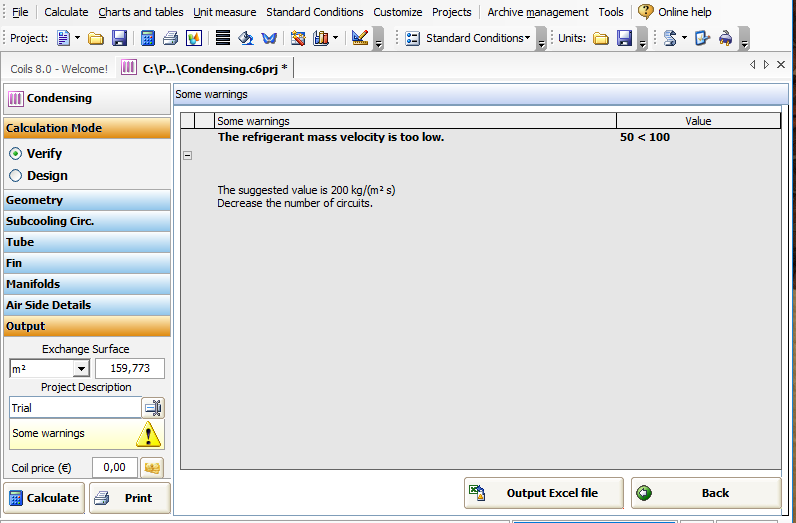

By clicking on the warning message, it is possible to see the data to be optimised and the software proposal for the parameters to be affected.

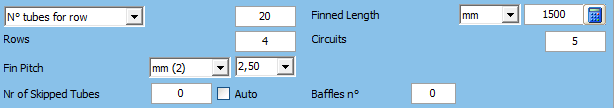

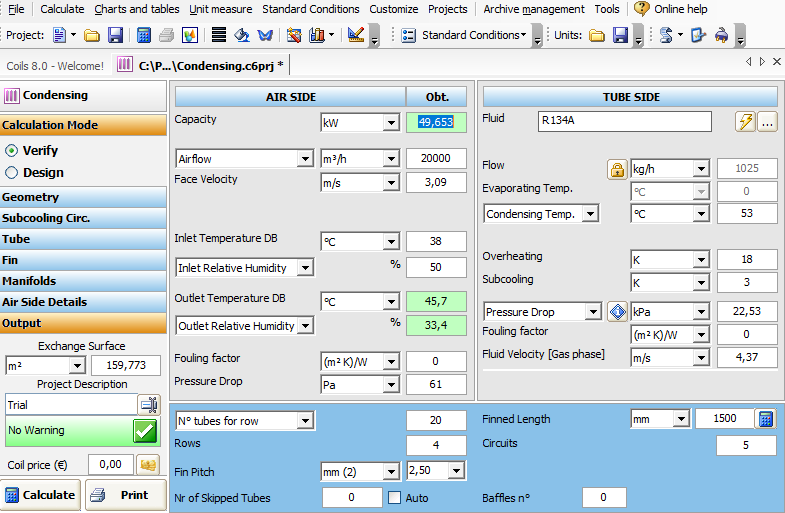

By reducing the number of circuits, we receive the calculation without warning:

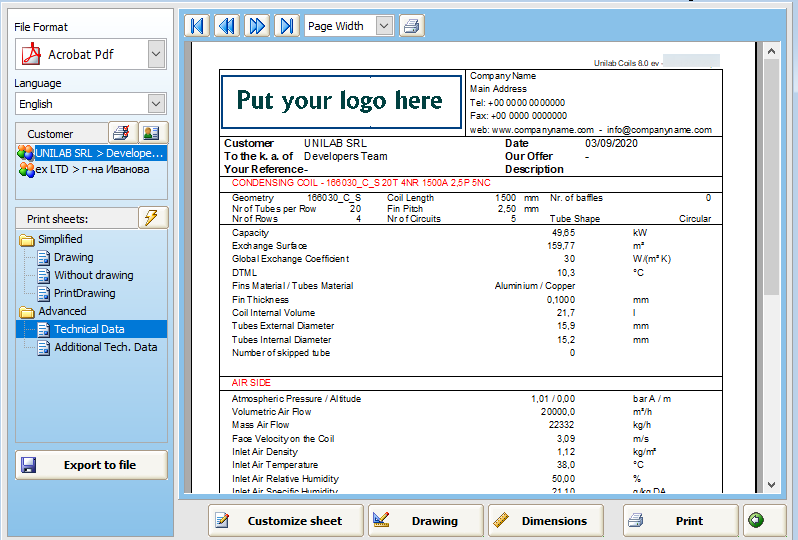

To see the calculation results
