UNILAB Coils User Manual

New Geometry

Let’s see an example of inserting a new geometry for DX-Coil with:

External diameter        5.7 mm

Tube spacing                19.05 mm

Rows Spacing                16.5

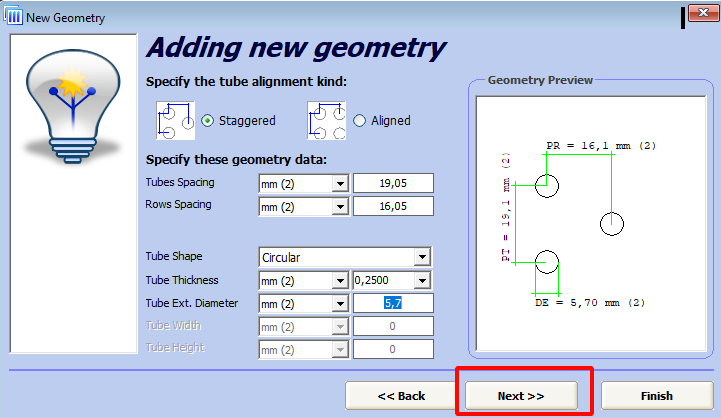

At following screen let’s click on the “New” button

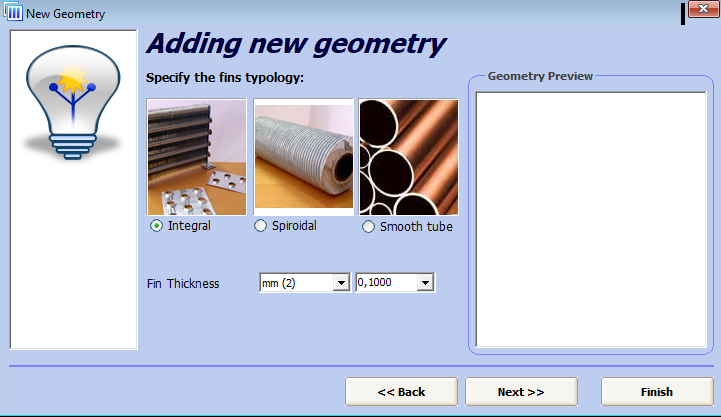

Let’s insert Fin Thickness at 0,10 mm and than

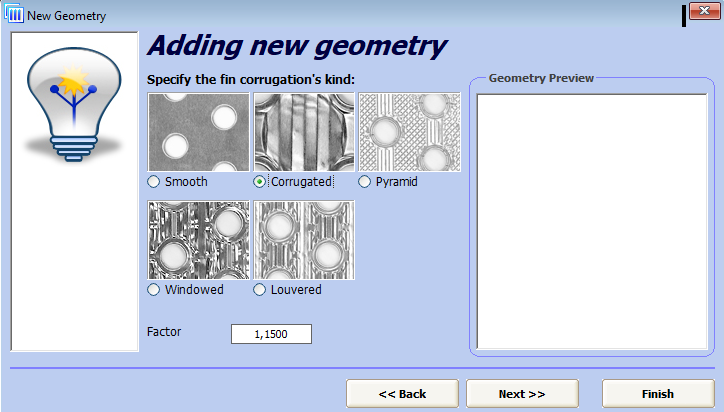

Let’s select a corrugated fin (in this case in the window "Factor" the user can specify an individually elaborated fin corrugation factor) and press "Next".

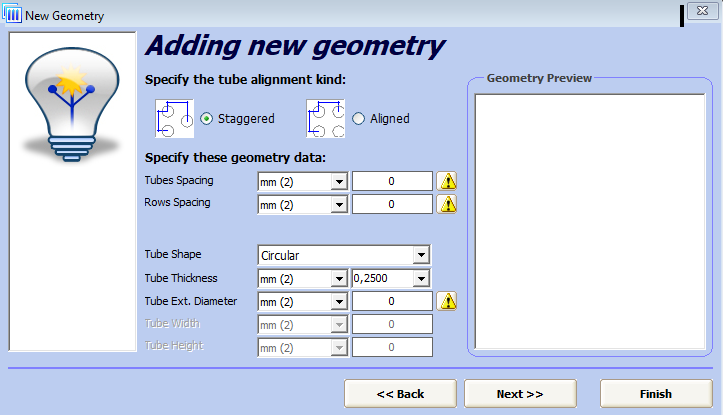

Let’s enter all necessary for the heat exchanger data

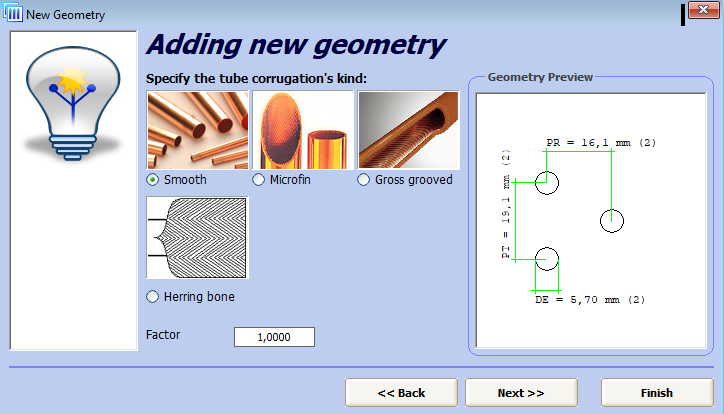

Than we repeat the same procedure to choose the tubes (let’s choose the snooth type)

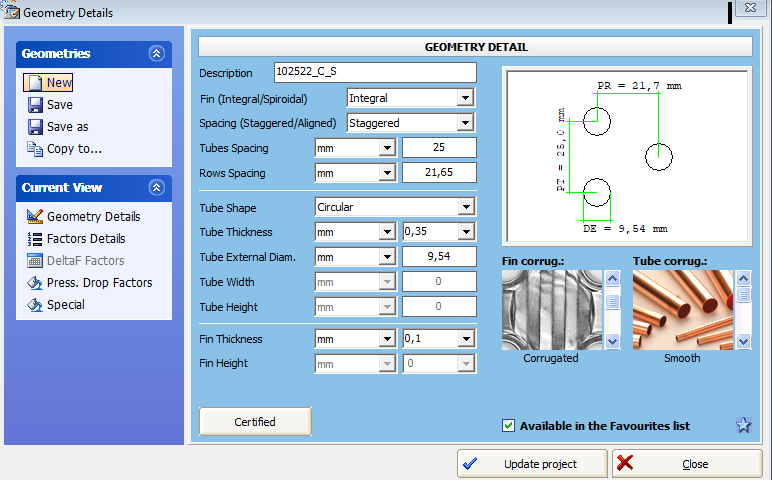

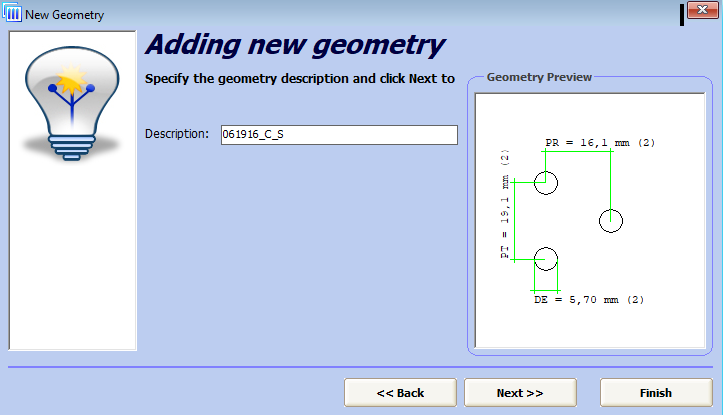

At this stage it is possible to change the name of geometry.

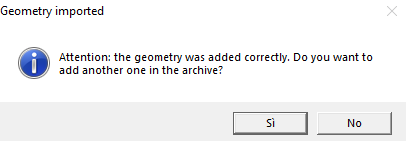

In this case we do not need to add another geometry, so reply  “No”

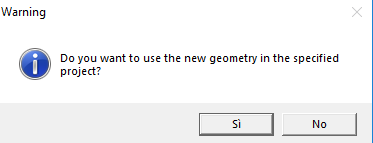

Then we choose “Yes”, click on and geometry will be used in the current project.

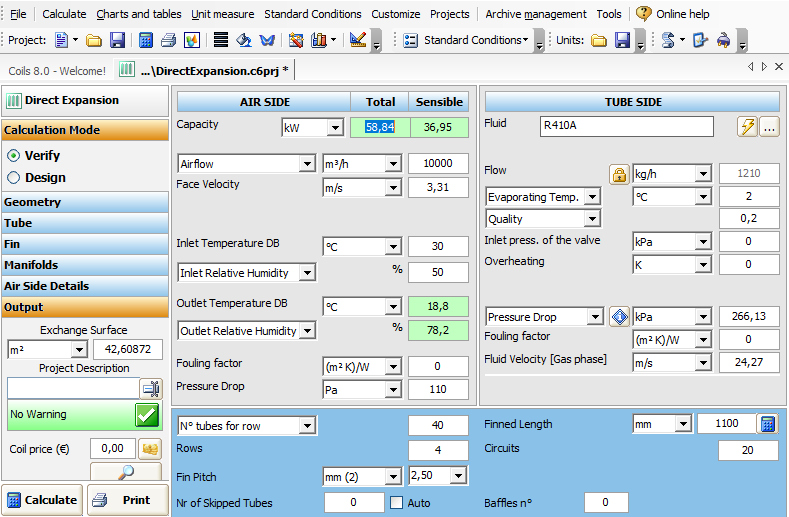

Now we can proceed with a Calculation.
