Calculation Recuperators M-N (Run-around Coil System)

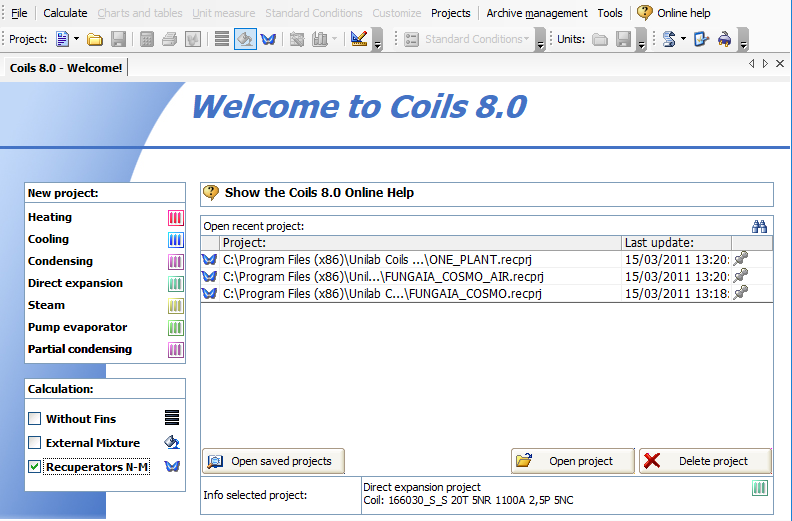

Now, as you can see, we have three examples of project already filled with data, but, just for example, let’s open one that refers to recuperators N-M of a mushroom bed

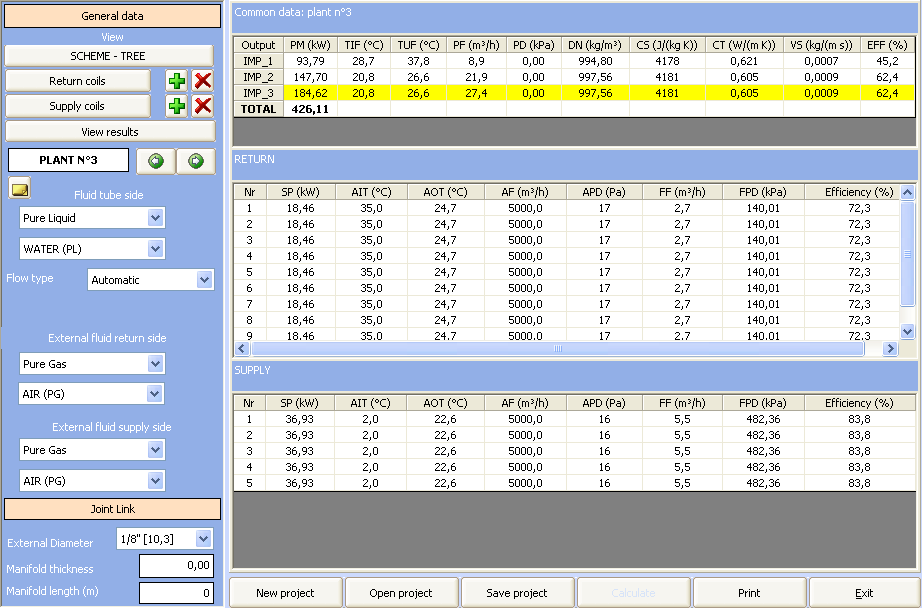

You get the above input data for the current project.

This are the input data which in this case are filled, but in case of new project, you can insert them on your own

On the main menu, on the left side, by clicking on the “Supply Coils” button

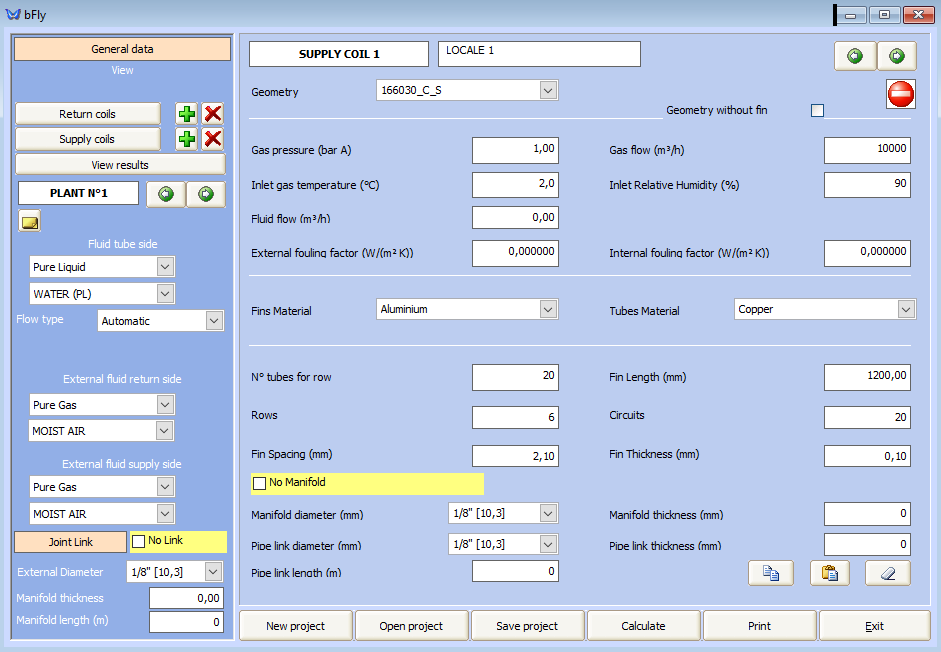

This is an example of the supply coil. As you can see, in the data inserted, the supply coil has lower inlet temperature, than the return.

You can choose also the Fluid tube side, the external fluid return side, the external fluid supply side, the joint link.

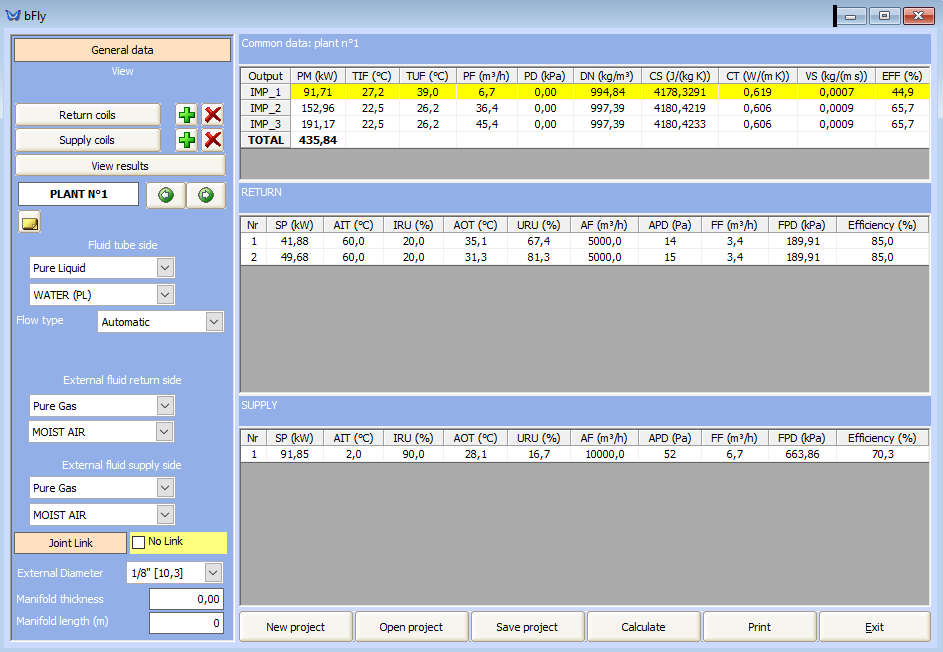

To get the results please hit the “Calculate” button

The “Print” button will give the following

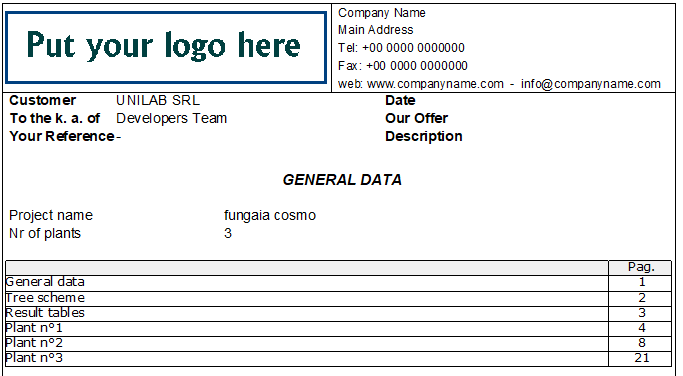

After hitting the printing button again, you will see the print preview with all the results of calculation and scheme three.

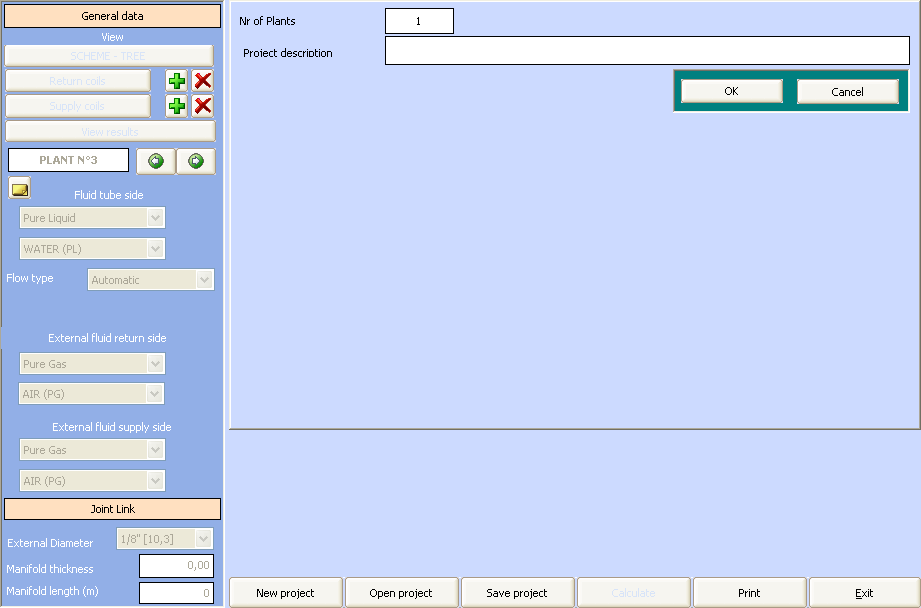

The button “New project ” allows to start a new project.
