UNILAB Coils User Manual

External Mixture

We have added (only in ENTERPRISE version) in all the modalities the possibility to choose on the external tubes side whichever fluid  either in gaseous phase or in liquid phase, both pure and mixture. The actual limitation is, that the calculation is performed without consideration of the condensation of some condensing fluid, so only the calculation of the sensible capacity will be given. Also in this case, the applications are many, if we consider the possibility to analyzing the combustion gas, or the coils immersed in water tubs, or inside shell and tubes, etc…

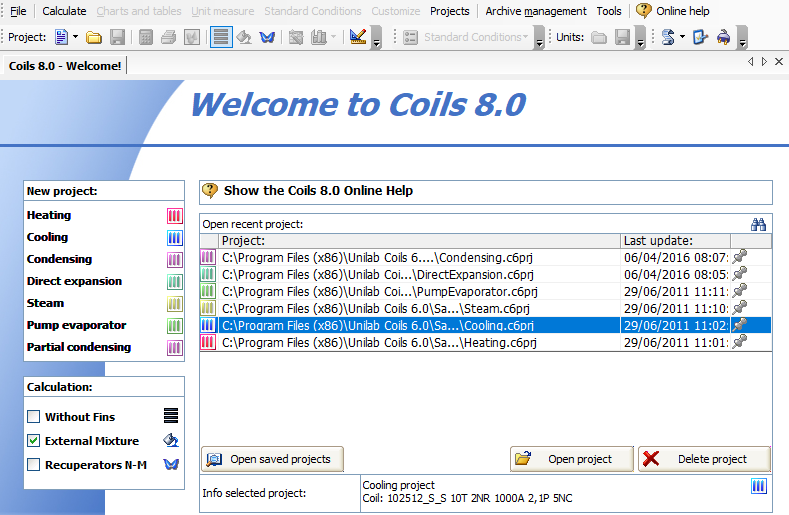

Let’s see the cooling coil example and click on external mixture

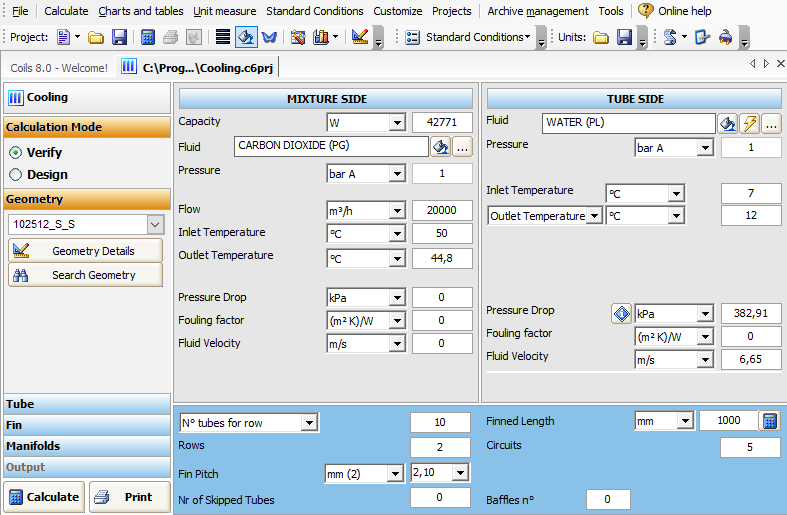

Instead of AIR SIDE we can see MIXTURE SIDE

We can activate the fluid search:

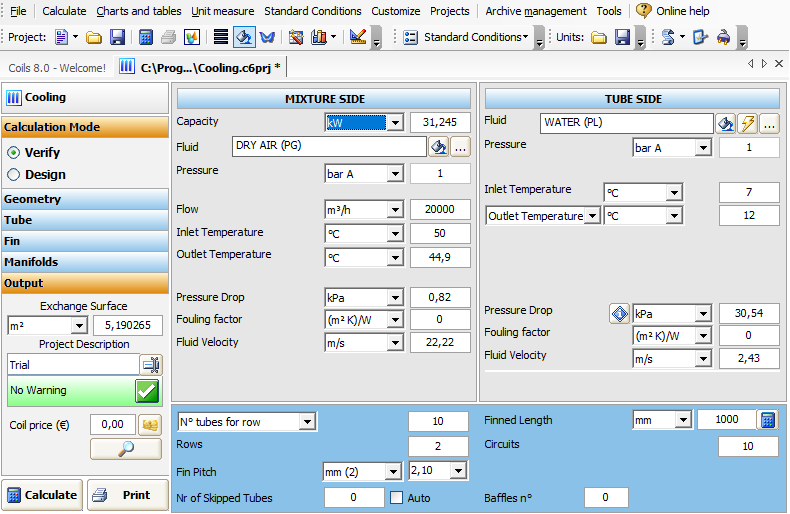

Then we can perform our calculation and proceed to the printouts.
